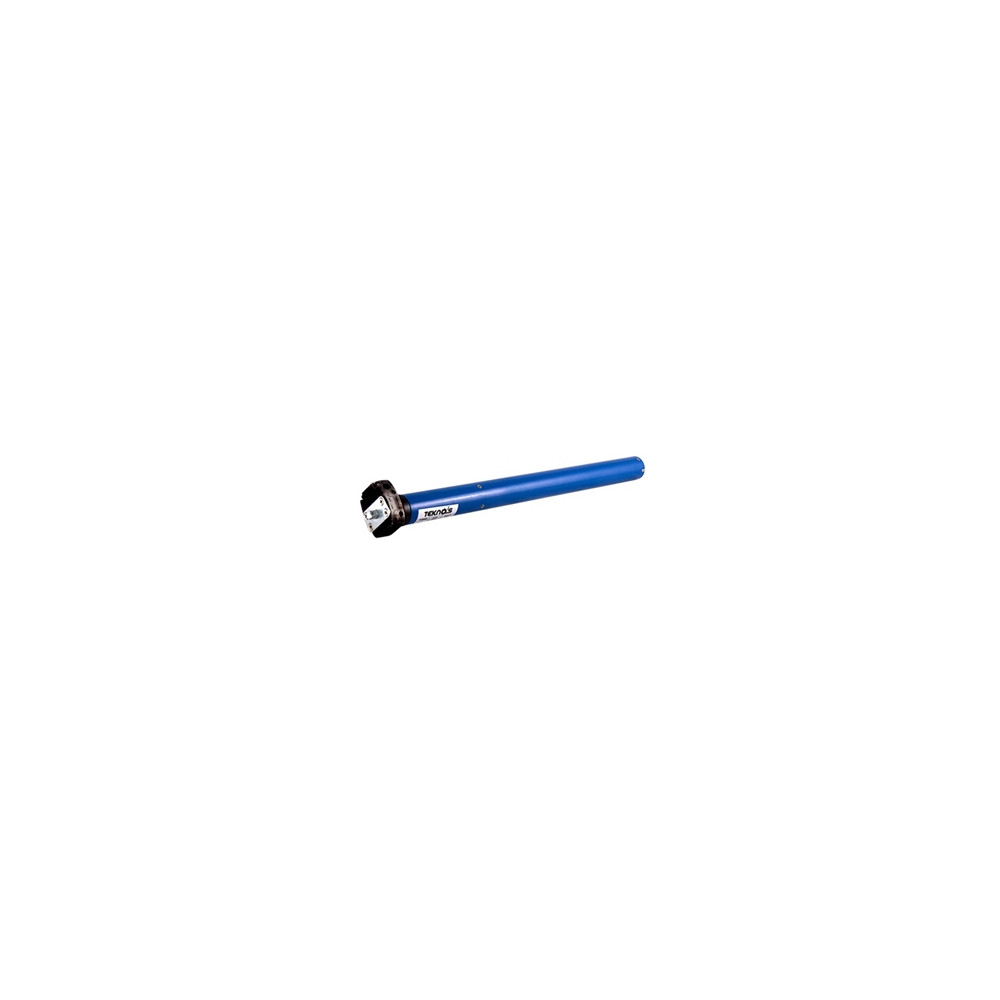

MOTORE TUBOLARE T45MM50 FINECORSA MECCANICO MANOVRA DI SOCCORSO TAPPARELLE AVVOLGIBILI TENDE DA SOLE DIAMETRO 45mm - 205 W - 50 Nm - 95 KG APPLICAZIONI : Tapparella Avvolgibile, Screen e tende a rullo da interno, Tende da Sole Motoriduttore a 4 fili, Alimentazione 230Vac con comando di fase Salita/Discesa da collegare sui fili marrone e nero Fine-corsa meccanico semplice e preciso a regolazione manuale Foro esagonale 7mm Centraline Elettroniche Compatibile TE1-TC2-TC3 CARATTERISTICHE TECNICHE: IP 44 PORTATA 95 Kg Coppia 50 Nm Giri/min 12 Alimentazione 230/50 Vac/Hz Assorbimento 0,86 A Potenza 205 W Termica 4 Min Fine Corsa 22 numero giri L1/L2 612/595 mm ADATTATORI DISPONIBILI Rullo Ø 50mm Tondo P3545R50T Rullo AL Ø 50mm C45R50RS – P45R50RS Rullo Ø 60mm Ottagonale C45R60OT-P45R60OT Rullo Ø 60mm Stella C45R60ST-P45R60ST Rullo Ø 70mm Ottagonale C45R70OT-P45R70OT Rullo Ø 63mm Ogiva C45R63OB-P45R63OB Rullo Ø 70mm Ogiva C45R70OG-P45R70OG Rullo Ø 70mm Rol C45R70OB-P45R70OB Rullo Ø 60mm Tondo C45R60T-P45R60T Rullo Ø 78mm Ogiva C45R78OG-P45R78OG Rullo Ø 78mm Rol C45R78OB-P45R78OB Rullo Ø 85mm Ogiva C45R85OG-P45R85OG
