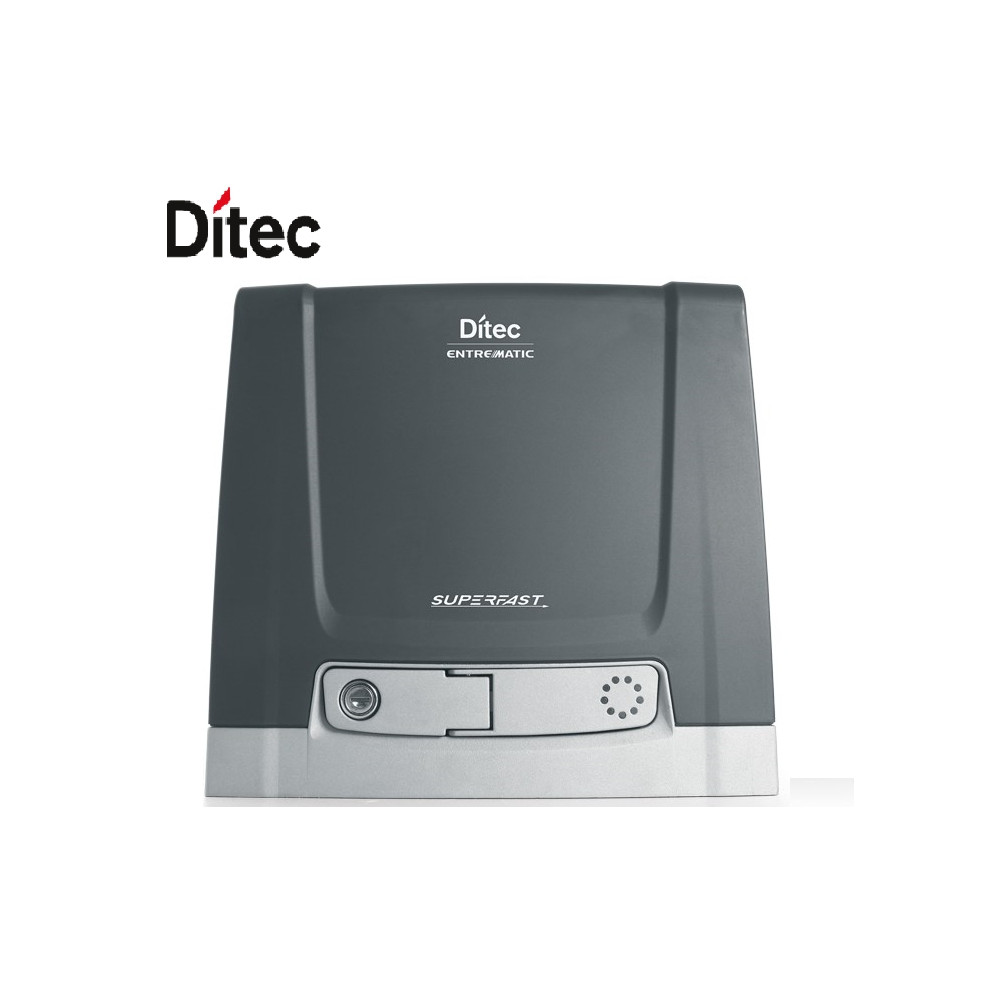

MOTORIDUTTORE SUPERFAST NEOS 24V DITEC NES600EHSF PER CANCELLO SCORREVOLE FINO A 600 KG

MOTORIDUTTORE SUPERFAST NEOS 24V DITEC NES600EHSF PER CANCELLO SCORREVOLE FINO A 600 KG

NA NES600EHSF
Motoriduttore SUPERFAST 24Vcc, velocità di apertura fino a 40cm/s per servizio intenso, per cancelli fino a 600kg, con finecorsa magnetici integrati
Hurry! only 10 items left in stock.
Giorni Ore min sec
615,06 €
683,40 €
Risparmia 10%
Tasse incluse
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

DITEC SUPERFAST NES600EHSF Motoriduttore SUPERFAST 24Vcc per servizio intenso per cancelli fino a 600kg, con finecorsa magnetici integrati velocità di apertura fino a 40cm/s  Descrizione
  • Attuatore elettronico                           per cancelli scorrevoli fino a 600kg
  • Gestione corsa                                   finecorsa + encoder virtuale
  • Portata                                                600kg
  • Apertura massima                              20m
  • Classe di servizio                                4-intenso
  • Intermittenza                                       S2= 30 min  S3=50%
  • Alimentazione                                      230Vca  50/60 Hz
  • Alimentazione motore                         24 Vcc
  • Assorbimento                                      1,5 A
  • Spinta                                                   500N
  • Velocità di apertura e di chiusura        0,1 - 0,4 m/s
  • Sblocco per apertura manuale             a chiave
  • Temperatura di funzionamento           -20°C/+55°C  (-35°C/+55°C con NIO attivo
  • Grado protezione                                  IP 24D
  • Dimensioni prodotto (mm)                   335x220x325
  • Quadro di comando                             CS12E-CS12M(incorporato)
: NA NES600EHSF
