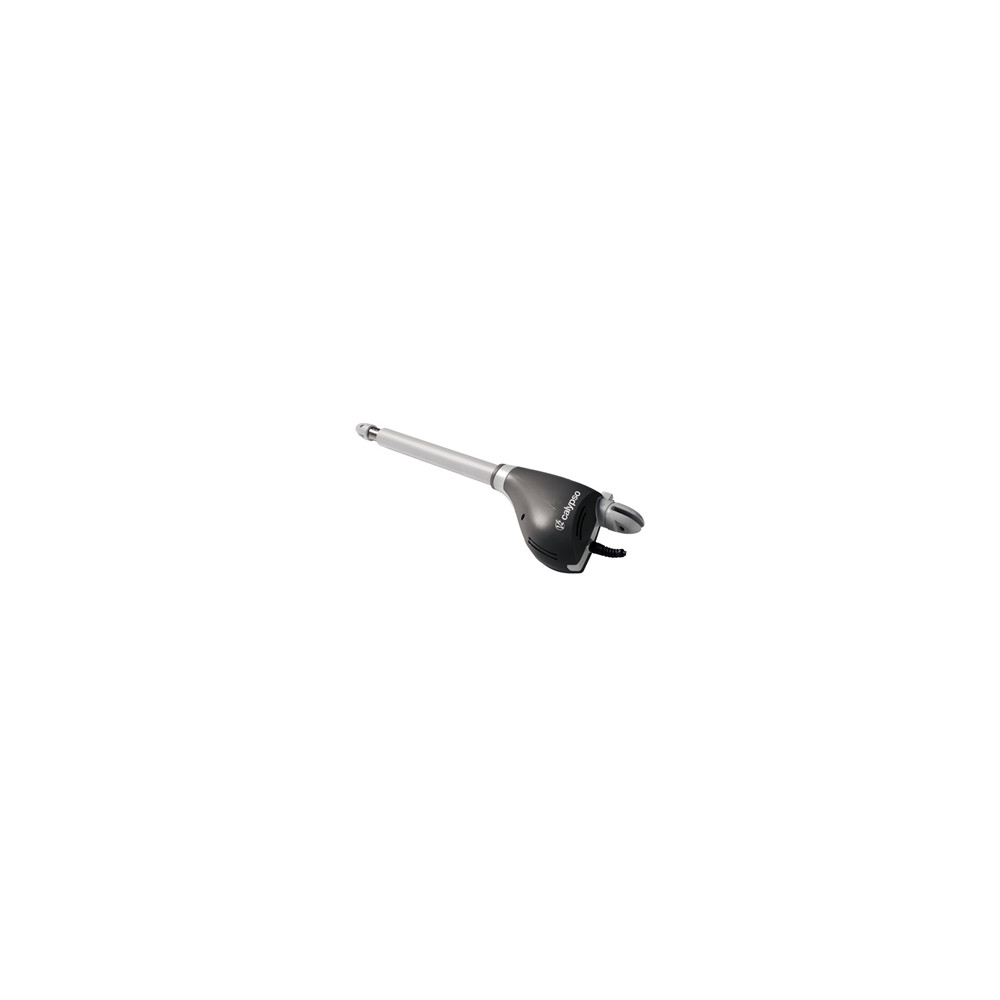

V2 22G001 CALYPSO 400 230V
Attuatore Elettromeccanico Irreversibile
per Cancelli a Battente Ante fino a 2,5 m e 400 Kg
Versione unica per anta destra e sinistra KIT DI STAFFE DA AVVITARE V2 162237 (OPZIONALI) MODELLO CALYPSO 400 CODICE 22G001 Lunghezza massima anta (m) 2,5 Peso massimo anta (Kg) 400 Alimentazione (Vac - Hz) 230 - 50 Assorbimento a vuoto (A) 0,8 Assorbimento massimo (A) 1,2 Potenza motore (W) 250 Condensatore (F) 8 Corsa massima di traino (mm) 400 Velocità di traino (m/s) 0,016 Spinta massima (N) 2300 Temperatura di esercizio (°C) -30 + 50 Grado di protezione (IP) 44 Ciclo di lavoro (%) 30 Peso motore (Kg) 6,5
